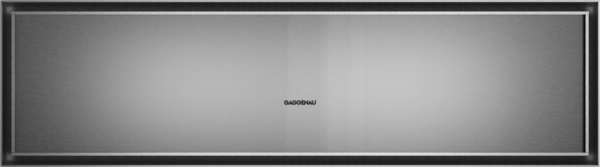

Gaggenau Expressive series, warming drawer, 30''

Gaggenau
Model #:
GW483720
Color:
Stainless steel behind smoked glass

Gaggenau Expressive series, warming drawer, 30''

Model: GW483720 | Gaggenau Gaggenau Expressive series, warming drawer, 30''
Model: GW483720 | Gaggenau Gaggenau Expressive series, warming drawer, 30''
Model: GW483720 | Gaggenau Gaggenau Expressive series, warming drawer, 30''

Gaggenau Expressive series, warming drawer, 30''

Price

Sale Price

$3,999.00

Extended Service Contracts

We might not be able to fulfill your order for the quantity requested

Dimensions

Width: 29 12/16

Height: 8 7/16

Depth: 20 7/16

Color

Stainless steel behind smoked glass
Features
  • Handleless drawer.
  • Bright interior lighting
  • Push-to-open function.
  • Hygienic stainless steel interior with glass bottom
  • Direct temperature selection in the range 80 °F to 180 °F.
  • Also for low-temperature cooking, dough proofing, herbs and fruits drying, chocolate melting and defrosting.
  • Preheating of small beverages.
  • Warming of dishes.
  • Keeping meals warm.
  • Low-temperature cooking.
  • Direct temperature control.
  • Personalization function via Home Connect.
  • 16 additional programs via Home Connect.
  • Touch key operation.
  • Cavity capacity 1.67 cu.ft. (47 liters).
Volume capacity
  • Dinner service for 10 people including ø 10 5/8" plates and soup bowls, additional bowls and a serving dish depending on size.
  • Capacity load max. 55 lbs.
  • Usable interior dimensions
  • W27 5/8'' x H 6 1/2'' x D 16''.
  • Heating system for even heat distribution and stable cavity temperature.
  • Status indicator, visible on the frame.
  • Glass bottom made of safety glass.
  • Additional programs and recipes.
  • Remote control and monitoring.
  • Timing function.
  • Plan the niche without back wall.
  • Protrusion from appliance front to furniture cabinet 1 5/8" (42 mm).
  • Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf.
  • Installation directly above a dishwasher is not allowed.
  • The electrical connection must be accessible and located outside the oven cutout.
  • The electric outlet can be planned behind the appliance.
  • Total rating 0.82 KW.
  • Electrical connection cable 68 7/8" (1.75 m), hardwire required.
Product Description

Highlights Handleless drawer. Bright interior lighting Push-to-open function. Hygienic stainless steel interior with glass bottom Direct temperature selection in the range 80 °F to 180 °F. Also for low-temperature cooking, dough proofing, herbs and fruits drying, chocolate melting and defrosting. Cooking modes Preheating of small beverages. Warming of dishes. Keeping meals warm. Low-temperature cooking. Direct temperature control. Personalization function via Home Connect. 16 additional programs via Home Connect. Operation Touch key operation. Features Cavity capacity 1.67 cu.ft. (47 liters). Volume capacity: Dinner service for 10 people including ø 10 5/8" plates and soup bowls, additional bowls and a serving dish depending on size. Capacity load max. 55 lbs. Usable interior dimensions W27 5/8'' x H 6 1/2'' x D 16''. Heating system for even heat distribution and stable cavity temperature. Status indicator, visible on the frame. Glass bottom made of safety glass. Selected digital services (Gaggenau Home Connect) Additional programs and recipes. Remote control and monitoring. Timing function. Planning notes Plan the niche without back wall. Protrusion from appliance front to furniture cabinet 1 5/8" (42 mm). Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf. Installation directly above a dishwasher is not allowed. The electrical connection must be accessible and located outside the oven cutout. The electric outlet can be planned behind the appliance. Rating Total rating 0.82 KW. Electrical connection cable 68 7/8" (1.75 m), hardwire required.

Specification
General
Product group Platewarmer
Brand Gaggenau
Product name / series name Warming Drawer
SKU GW483720
Internal article number GW483720
EAN code 4242006311872
Product color Stainless steel behind smoked glass
Construction type Built-in
Type of control Electronic
Type of control Via app
Current (A) 10
Volts (V) 120
Frequency (Hz) 60
Power Cord Length 68 7/8
Power cord length (cm) 175
Plug type Gardy plug w/ earthing
Product packaging dimensions (HxWxD) 13 6/16'' x 27 15/16'' x 33 7/16''
Height of the packed product (mm) 340
Overall appliance dimensions (HxWxD) 8 7/16'' x 29 3/4'' x 20 7/16''
Width of the packed product (mm) 850
Depth of the packed product (mm) 710
Minimum height for installation (mm) 215
Maximum height for installation (mm) 219
Minimum width for installation (mm) 722
Maximum width for installation (mm) 730
Depth for installation (mm) 550
Net weight (kg) 31.2
Gross weight (kg) 33.2
Required cutout size (HxWxD) 8 9/16'' x 28 7/16'' x 21 5/8''
Safety device Not Applicable
Interior light Yes
Diameter reference plates (cm) 26
Maximum number of reference plates 40
Maximum number of espresso cups 192
Power output heating 1
UPC code 825225971733
Gross weight 73.000
Net weight 69.000
