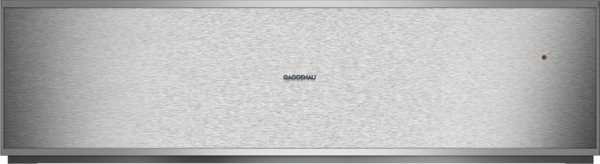

400 series, warming drawer, Stainless steel behind glass
400 series, warming drawer, Stainless steel behind glass
Call for our best price
Dimensions
Width: 29 10/16
Height: 8 3/16
Depth: 21 9/16
Color
Product Description
Handleless drawer. Bright interior light Soft closing system Hygienic stainless steel interior with glass bottom Keeps food and drinks warm, also for preparing and cooking meals Defrosting of meals/proofing of yeast dough. Preheating of small beverages. Keeping meals warm/slow cooking. Warming of dishes. Operation Rotary knob operation. Recessed grip at the front bottom center of the drawer. Features Status display, visible in the glass front. Glass bottom made of safety glass. Planning notes Rating Total rating 0.81 KW. Total Amps: 10 A. 120 V / 60 Hz.
Specification
| General | |
| Product group | Platewarmer |
| Brand | Gaggenau |
| Product name / series name | Warming Drawer |
| SKU | WS482710 |
| Internal article number | WS482710 |
| EAN code | 4242006220396 |
| Construction type | Built-in |
| Type of control | Electronic |
| Type of control | Rotary knob |
| Current (A) | 10 |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Power cord length (cm) | 180.0 |
| Plug type | 120V-3 prong |
| Power Cord Length | 71 '' |
| Height of the packed product (mm) | 330 |
| Width of the packed product (mm) | 850 |
| Depth of the packed product (mm) | 710 |
| Product packaging dimensions (HxWxD) | 28 5/16 x 33 7/16 x 13 |
| Minimum height for installation (mm) | 203 |
| Overall appliance dimensions (HxWxD) | 8 3/16 x 29 5/8 '' x 21 5/8 |
| Maximum height for installation (mm) | 203 |
| Minimum width for installation (mm) | 724 |
| Maximum width for installation (mm) | 724 |
| Depth for installation (mm) | 550 |
| Net weight (kg) | 29.5 |
| Gross weight (kg) | 32.6 |
| Safety device | Door contact switch |
| Interior light | Yes |
| Required cutout size (HxWxD) | 8 x 28 1/2 '' x 21 11/16 '' |
| Diameter reference plates (cm) | 26 |
| Maximum number of reference plates | 40 |
| Maximum number of espresso cups | 120 |
| Power Level | High, Low, Medium, Plate |
| Power output heating | 1 |
| Additional Image 1 | https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00632376_WS482110_pstz_def.jpg |
| Additional Image 2 | https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00632468_WS482110_pov_def.jpg |
| Additional Image 3 | https://media3.bsh-group.com/Product_Shots/3000x3000/20007224_GG_GL_Cooling_400_4IS03R_us_3_def.jpg |
| UPC code | 825225900597 |
| Gross weight | 72.000 |
| Net weight | 65.000 |
